Twin-Head Explosion-Proof Emergency Light

PRODUCT OVERVIEW

Product Description

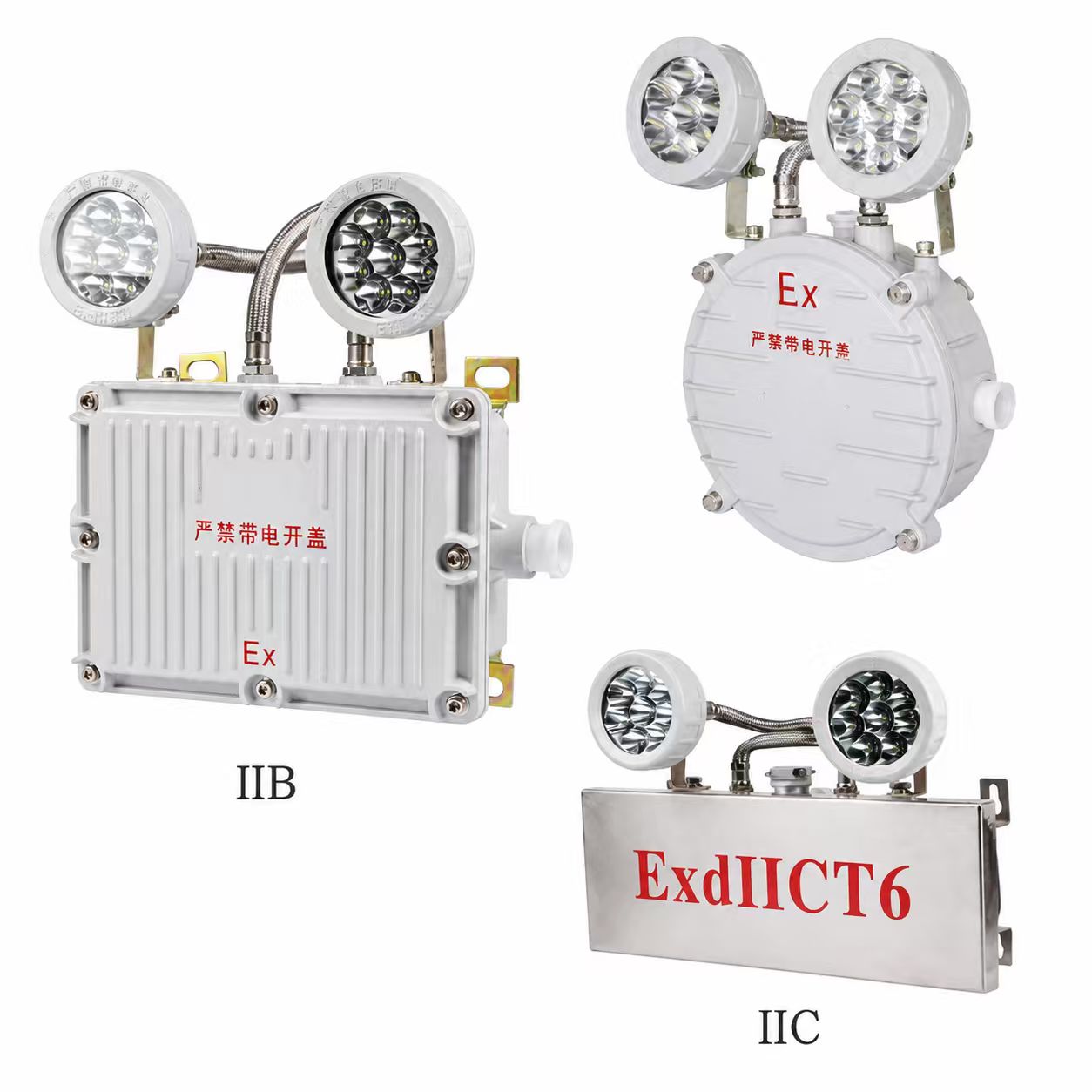

The cast-aluminium unit includes two LED heads, tempered-glass covers and an internal maintenance-free battery. It charges during normal supply and switches automatically to emergency operation after power loss, with over-charge and over-discharge protection for dependable standby lighting.

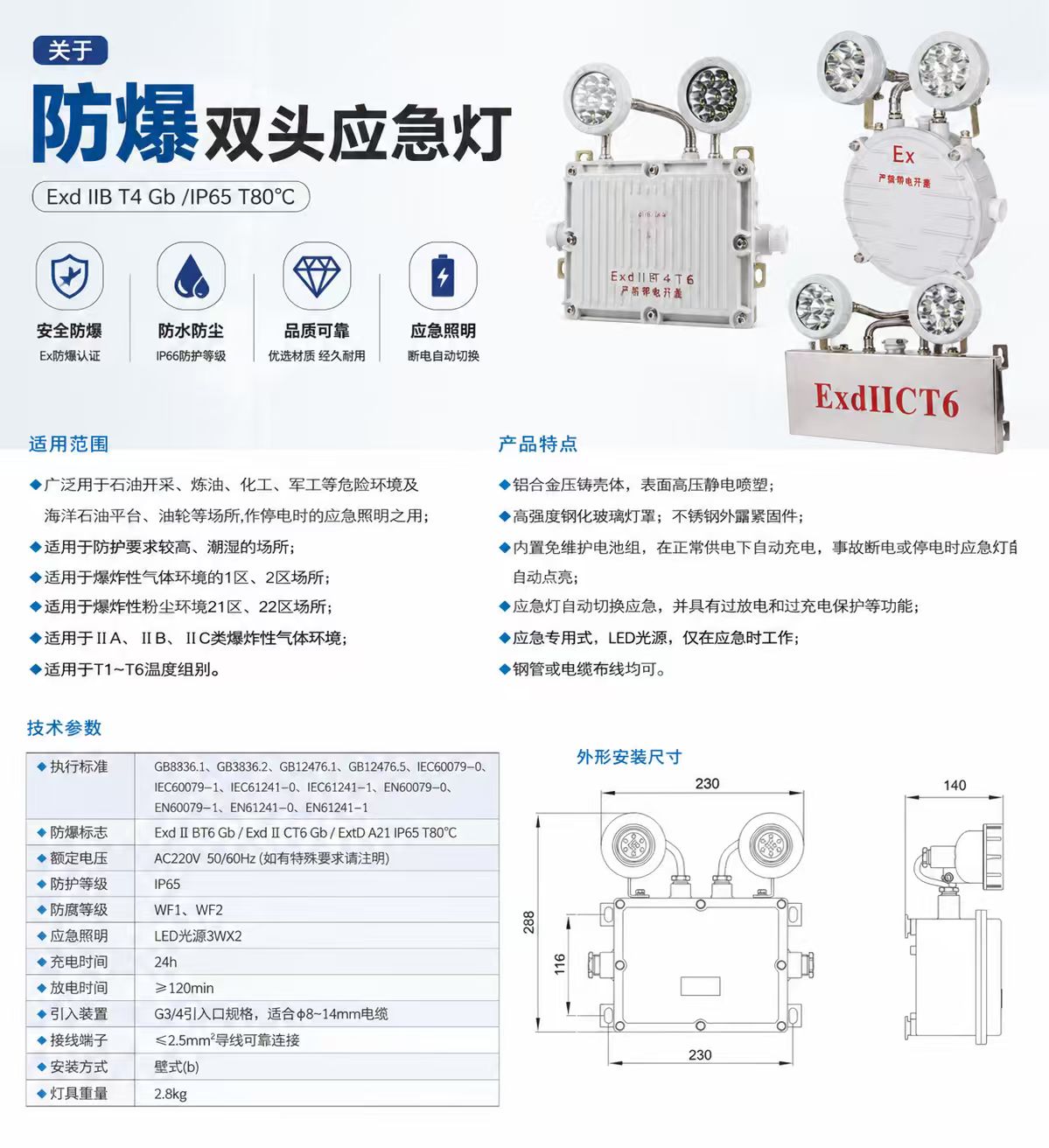

TECHNICAL DATA

Specifications

Explosion protection

Exd IIBT6 Gb/Exd IICT6 Gb/ExtD A21 IP65 T80°C

Rated voltage

AC220V 50/60Hz(如有特殊要求请注明)

Ingress protection

IP65

Corrosion resistance

WF1、WF2

Emergency light source

LED光源3WX2

Charging time

24h

Emergency duration

≥120min

引入装置

G3/4引入口规格，适合中8~14mm电缆

Terminal capacity

≤2.5mm2导线可靠连接

Mounting

壁式(b)

Luminaire weight

2.8kg
