Stainless Steel Explosion-Proof Pushbutton Station

Explosion-Proof Pushbuttons and Signalling Devices

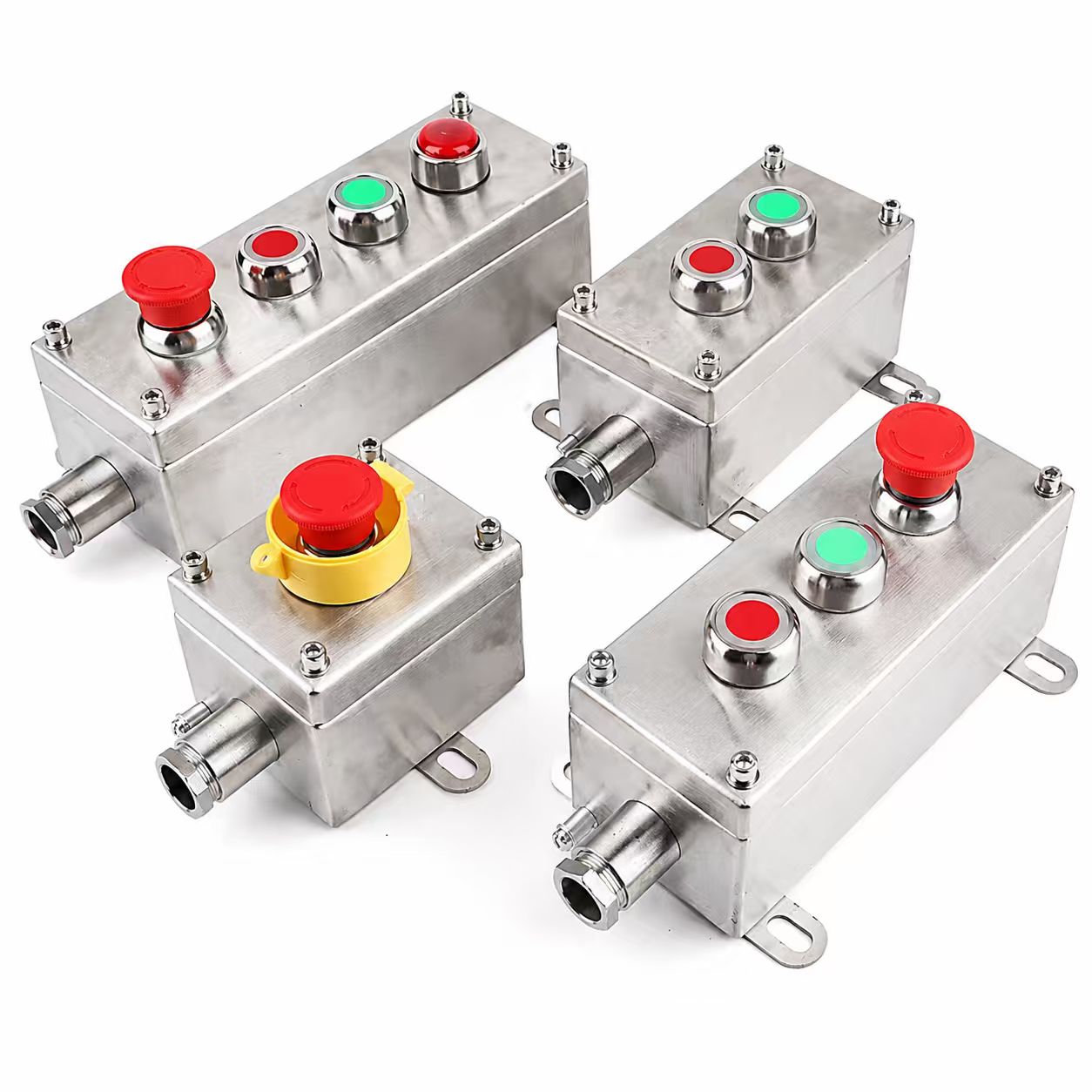

Stainless Steel Explosion-Proof Pushbutton Station

Model: BZA

IP66 stainless-steel pushbutton enclosure for corrosive hazardous-area control points.

stainless pushbutton stationexplosion-proof button boxcorrosion resistant controlIP66 enclosure

PRODUCT OVERVIEW

Product Description

The welded stainless body uses an increased-safety structure and houses explosion-protected pushbutton elements. It is suited to wash-down, chemical and coastal installations where corrosion resistance is important, with cable or conduit entry configurations available.

TECHNICAL DATA

Specifications

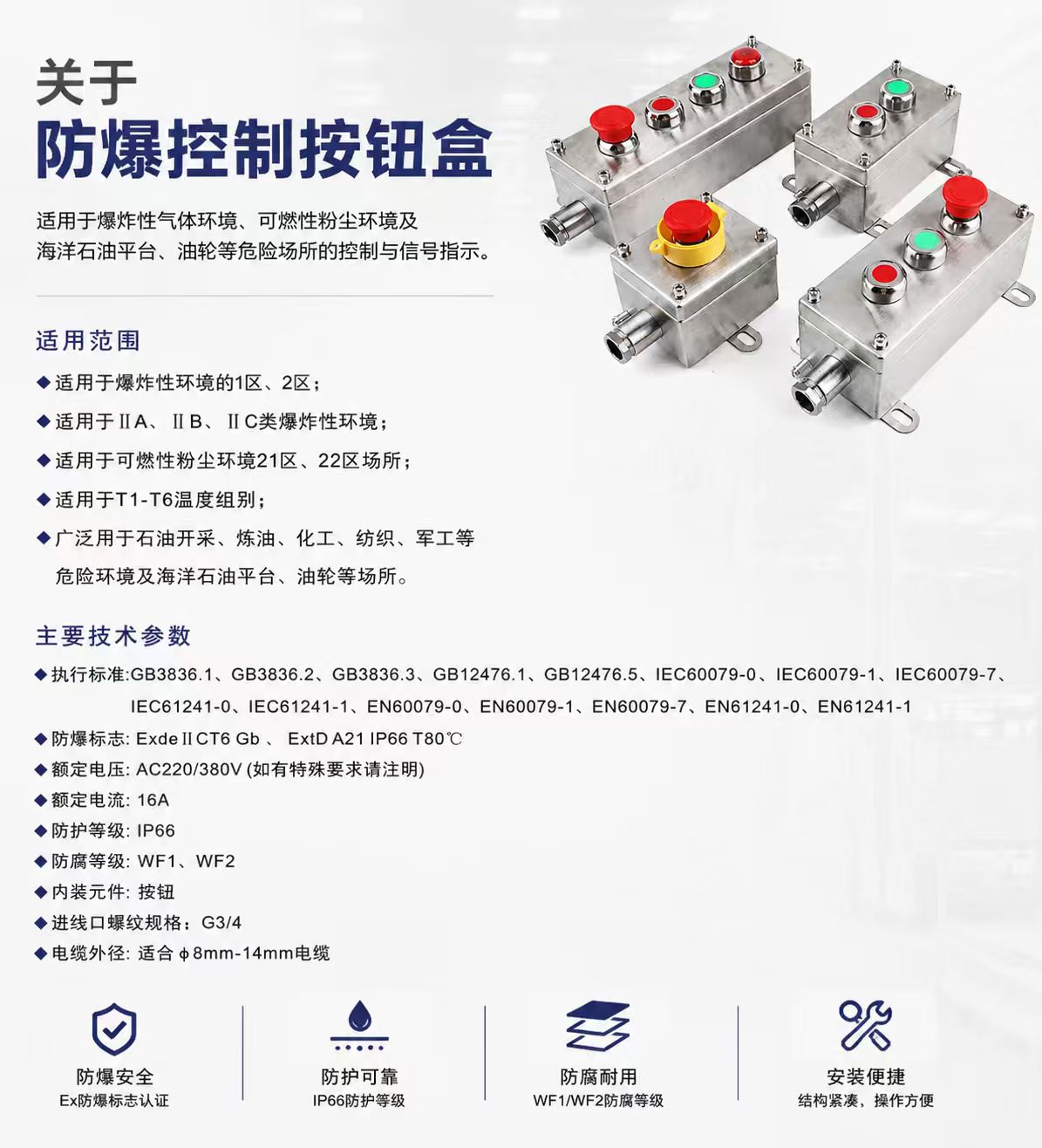

Explosion protection
ExdeIICT6 Gb、ExtDA21IP66 T80°C
Rated voltage
AC220/380V(如有特殊要求请注明)
Rated current
16A
Ingress protection
IP66
Corrosion resistance
WF1、WF2
Internal components
按钮
Entry thread
G3/4
Cable diameter
适合中8mm-14mm电缆
