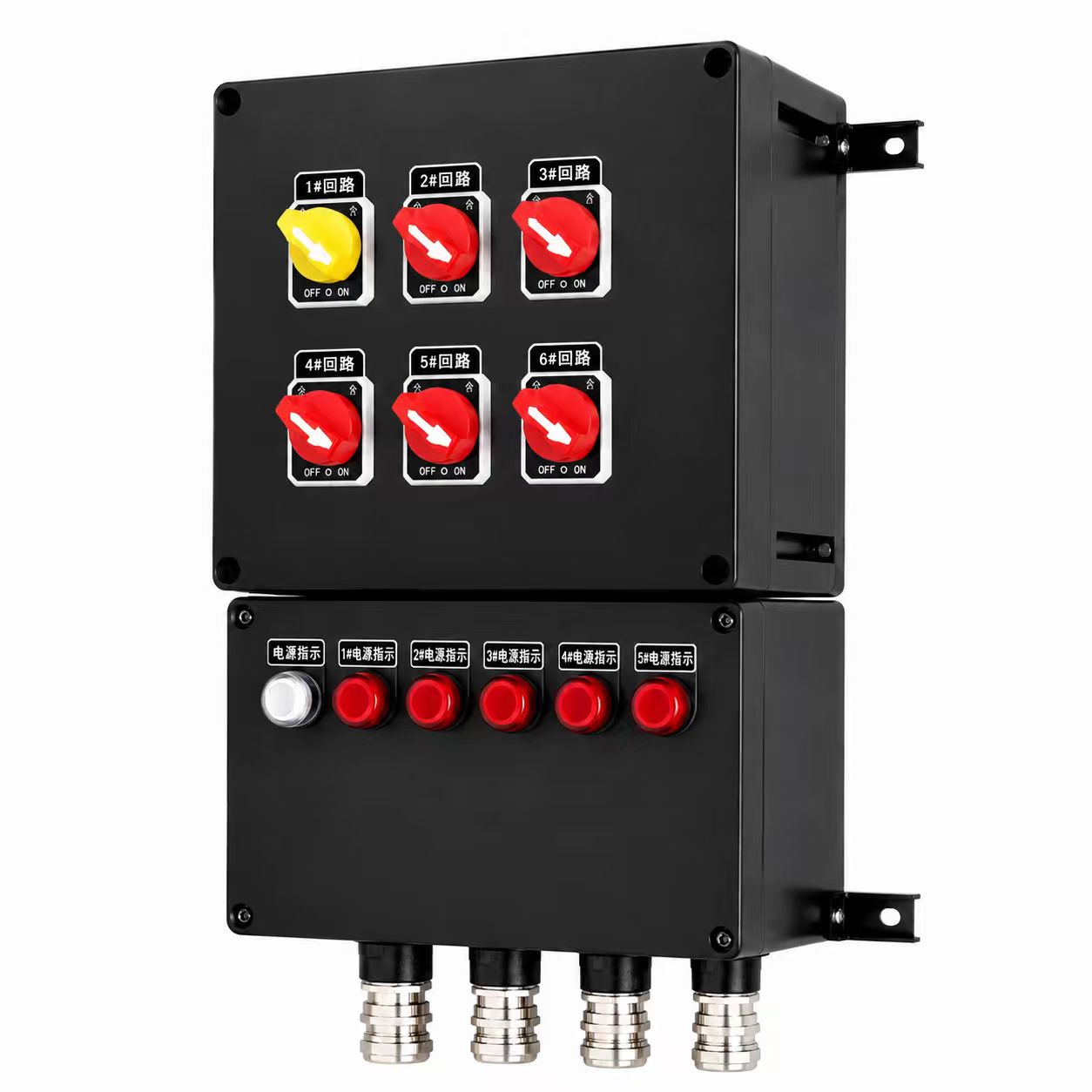

Explosion-Proof Corrosion-Resistant Distribution Unit

PRODUCT OVERVIEW

Product Description

The antistatic, impact-resistant enclosure uses labyrinth sealing, stainless captive fasteners and internal explosion-protected switching equipment. It distributes power and protects lighting, motors or auxiliary circuits, with optional leakage protection and project-specific branch arrangements.

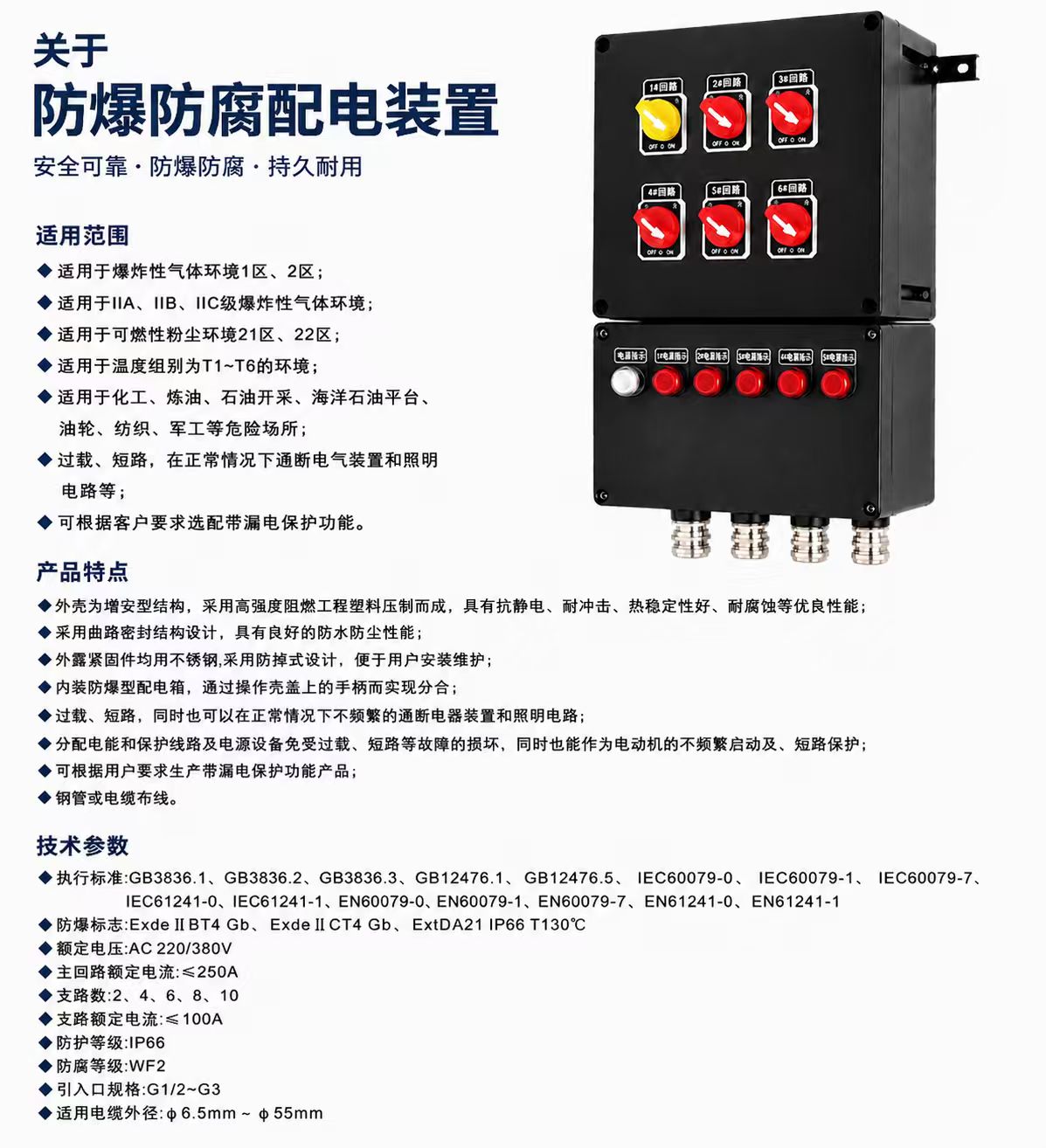

TECHNICAL DATA

Specifications

Explosion protection

Exde IIBT4 Gb、Exde IICT4 Gb、ExtD A21 IP66 T130°C

Rated voltage

AC220/380V

Main circuit rated current

≤250A支路数:2、4、6、8,10

Branch rated current

≤100A

Ingress protection

IP66

Corrosion resistance

WF2

Cable entry

G1/2~G3

Suitable cable diameter

中6.5mm~中55mm
