Explosion-Proof Pushbutton Control Station

Explosion-Proof Pushbuttons and Signalling Devices

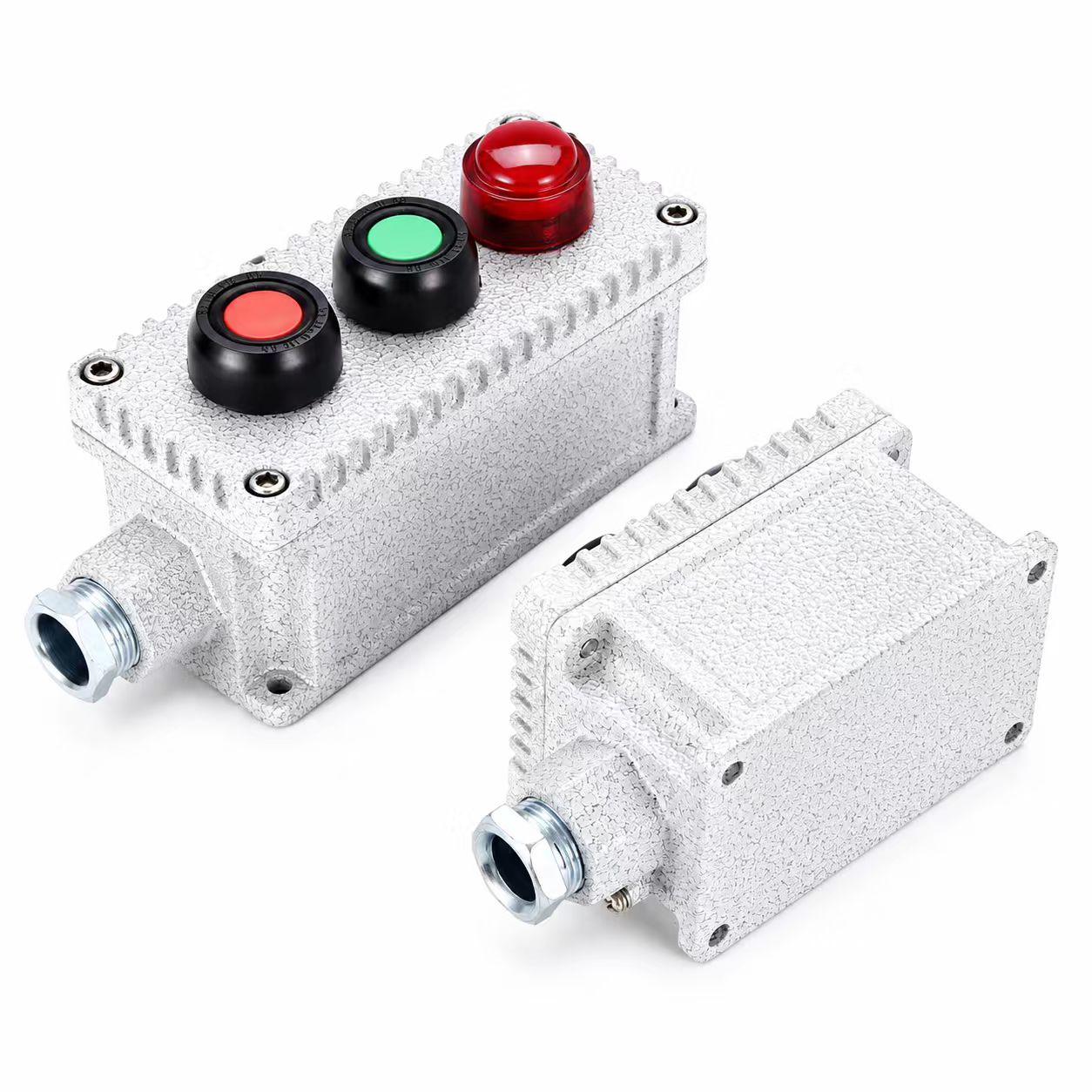

Explosion-Proof Pushbutton Control Station

Model: BZA53

IP66 local pushbutton station for start, stop and command functions in hazardous areas.

pushbutton control stationexplosion-proof button boxlocal machine controlIP66 control enclosure
Call UsSend InquiryWhatsApp

PRODUCT OVERVIEW

Product Description

The powder-coated aluminium enclosure uses an increased-safety construction and houses explosion-protected pushbutton elements. Entry configuration and button arrangement can be selected for local equipment operation using either cable or conduit wiring.

TECHNICAL DATA

Specifications

Explosion protection
ExdeIICT6 Gb、 ExtD A21IP66 T80°C
Rated voltage
AC220/380V(如有特殊要求请注明)
Rated current
16A
Ingress protection
IP66
Corrosion resistance
WF1、WF2
Internal components
按钮
Entry thread
G3/4
Cable diameter
适合8mm-14mm电缆

PRODUCT DETAILS

Product Images

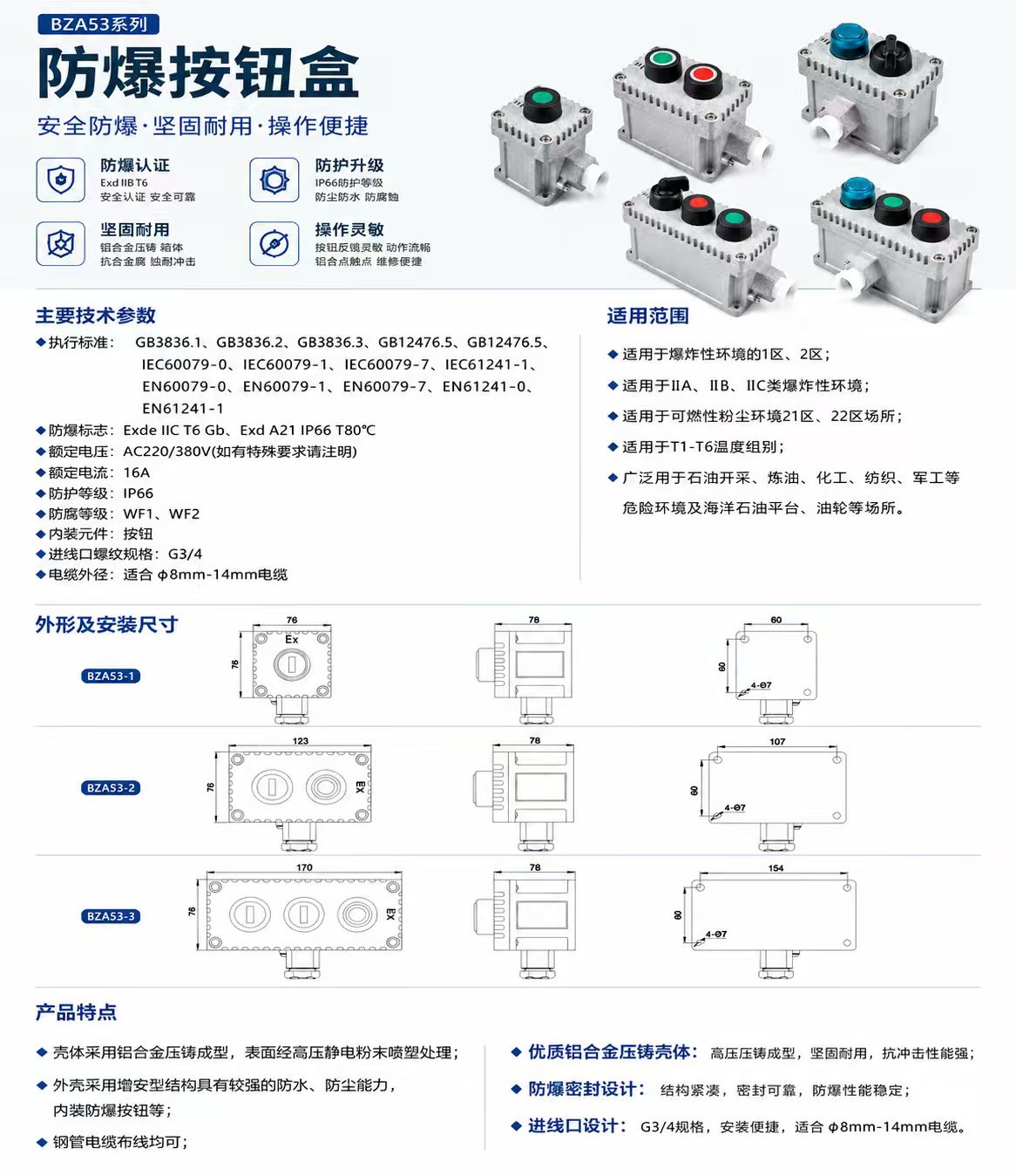

Explosion-Proof Pushbutton Control Station detail 1Explosion-Proof Pushbutton Control Station detail 2
