PRODUCT OVERVIEW
Product Description

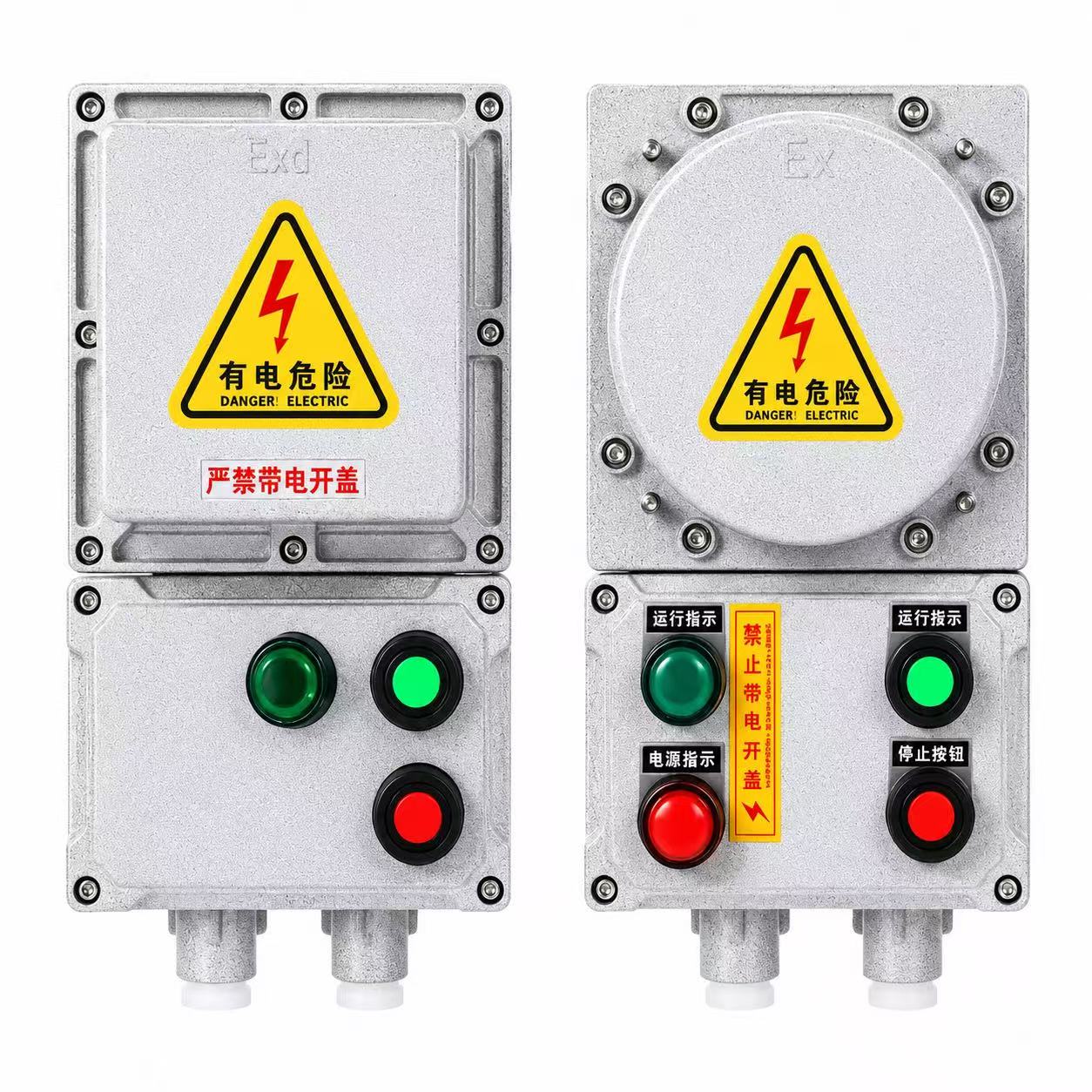

The enclosure can integrate a contactor, thermal overload relay, selector or pushbutton controls and an optional incoming breaker. It provides start, stop, overload, phase-loss and undervoltage functions for pumps, fans and other AC motors, with optional remote-control interfaces.

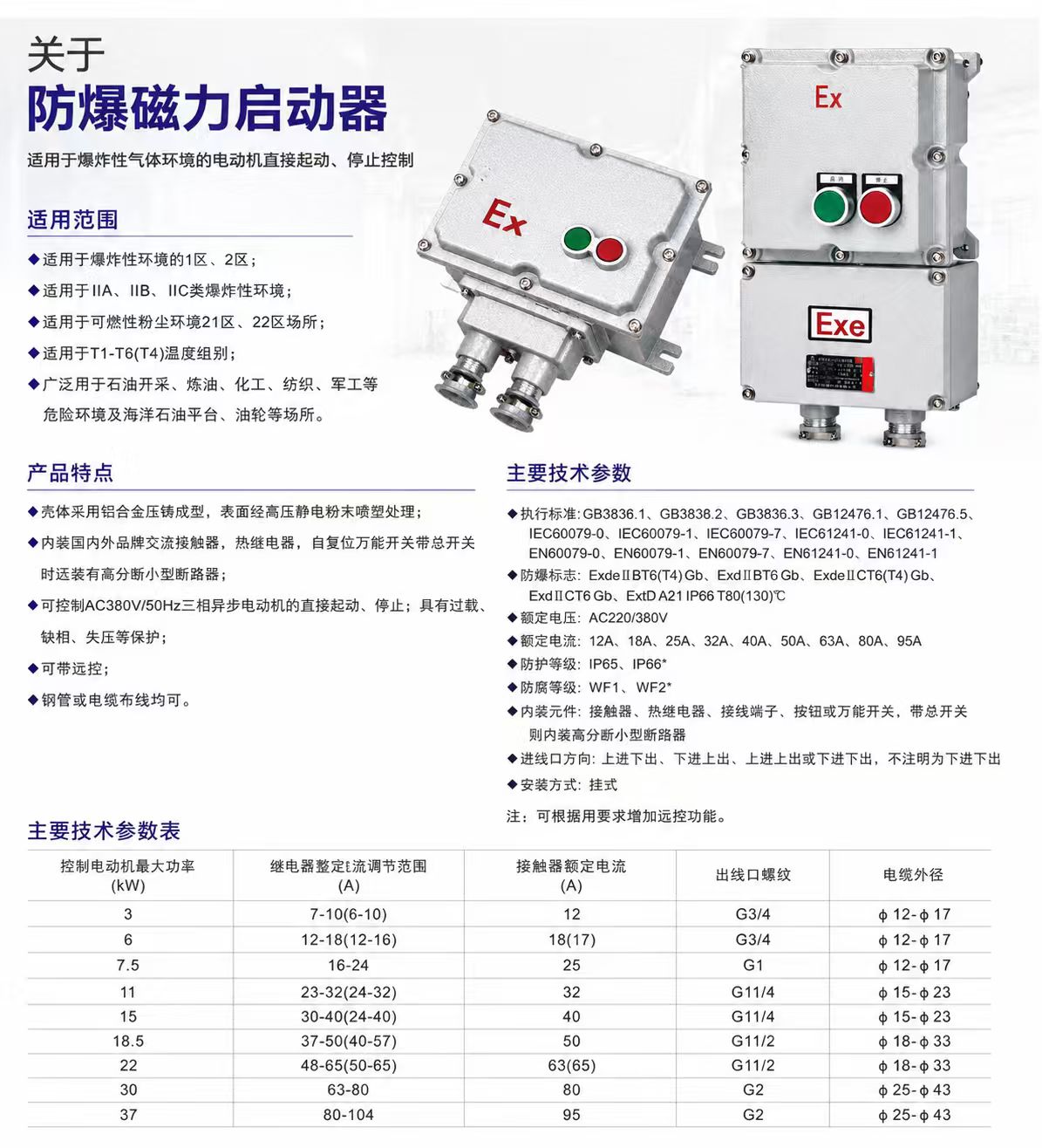

TECHNICAL DATA
Specifications
- Rated voltage
- AC220/380V防护等级:IP65、IP66*防腐等级:WF1、WF2*
- Explosion protection
- Exde lIBT6(T4) Gb、Exd IIBT6 Gb 、Exde lI CT6(T4) Gb, Exd II CT6 Gb 、ExtD A21 IP66 T80(130)°C
- Rated current
- 12A、18A、25A、32A、40A、50A、 63A、80A、95A
- Internal components
- 接触器、热继电器、接线端子、按钮或万能开关，带总开关则内装高分断小型断路器
- Cable entry direction
- 上进下出、下进上出、上进上出或下进下出，不注则为下进下出
- Mounting
- 挂式
