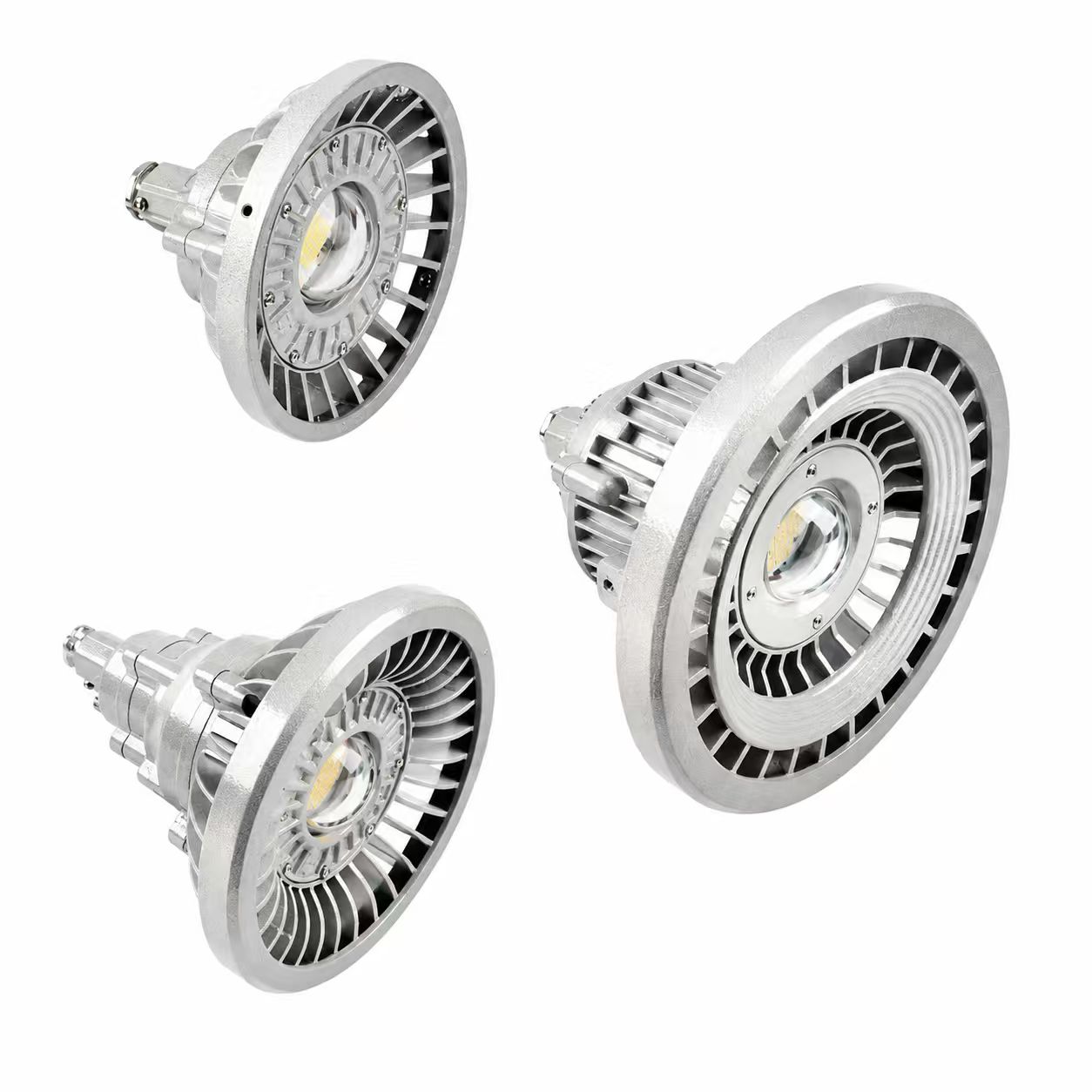

Compact LED Explosion-Proof Light

PRODUCT OVERVIEW

Product Description

The integrated aluminium housing separates the LED chamber from the driver compartment and uses a protected constant-current power module. Tempered glass, silicone sealing and precise optics provide an efficient solution for wall, ceiling or bracket mounting in confined industrial locations.

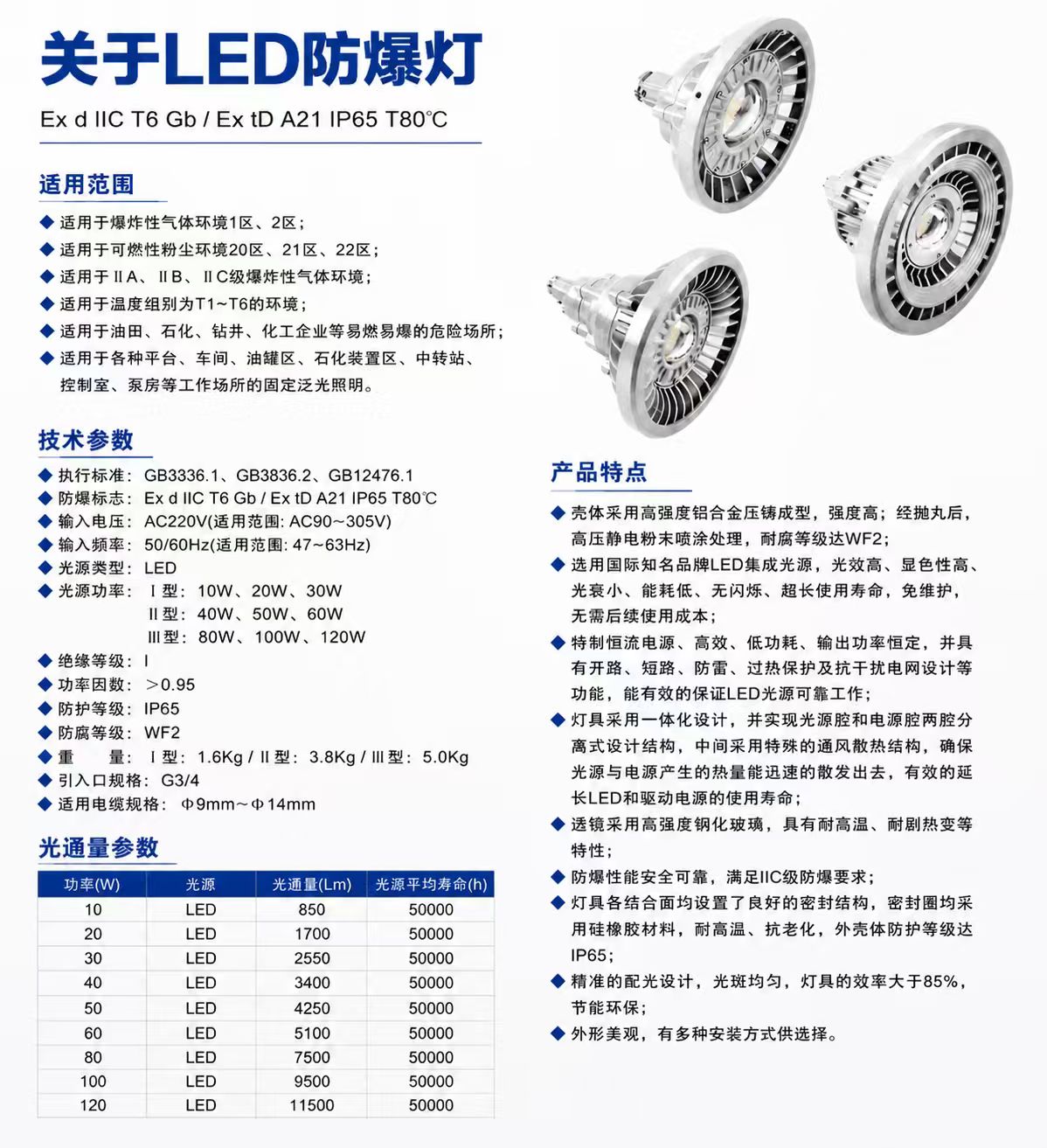

TECHNICAL DATA

Specifications

Explosion protection

Exd IICT6 Gb/ExtDA21IP65 T80°C

Input voltage

AC220V(适用范围:AC90~305V)

Input frequency

50/60Hz(适用范围:47~63Hz)

Light source

LED

Light source power

I型:10W、

Type II power

40W、50W、60W

Type III power

80W、100W、120W川型:

Insulation class

I

Power factor

>0.95

Ingress protection

IP65

Corrosion resistance

WF2

Weight

I型:1.6Kg/II型:3.8Kg/III型:5.0Kg

Cable entry

G3/4

Suitable cable size

中9mm~14mm
