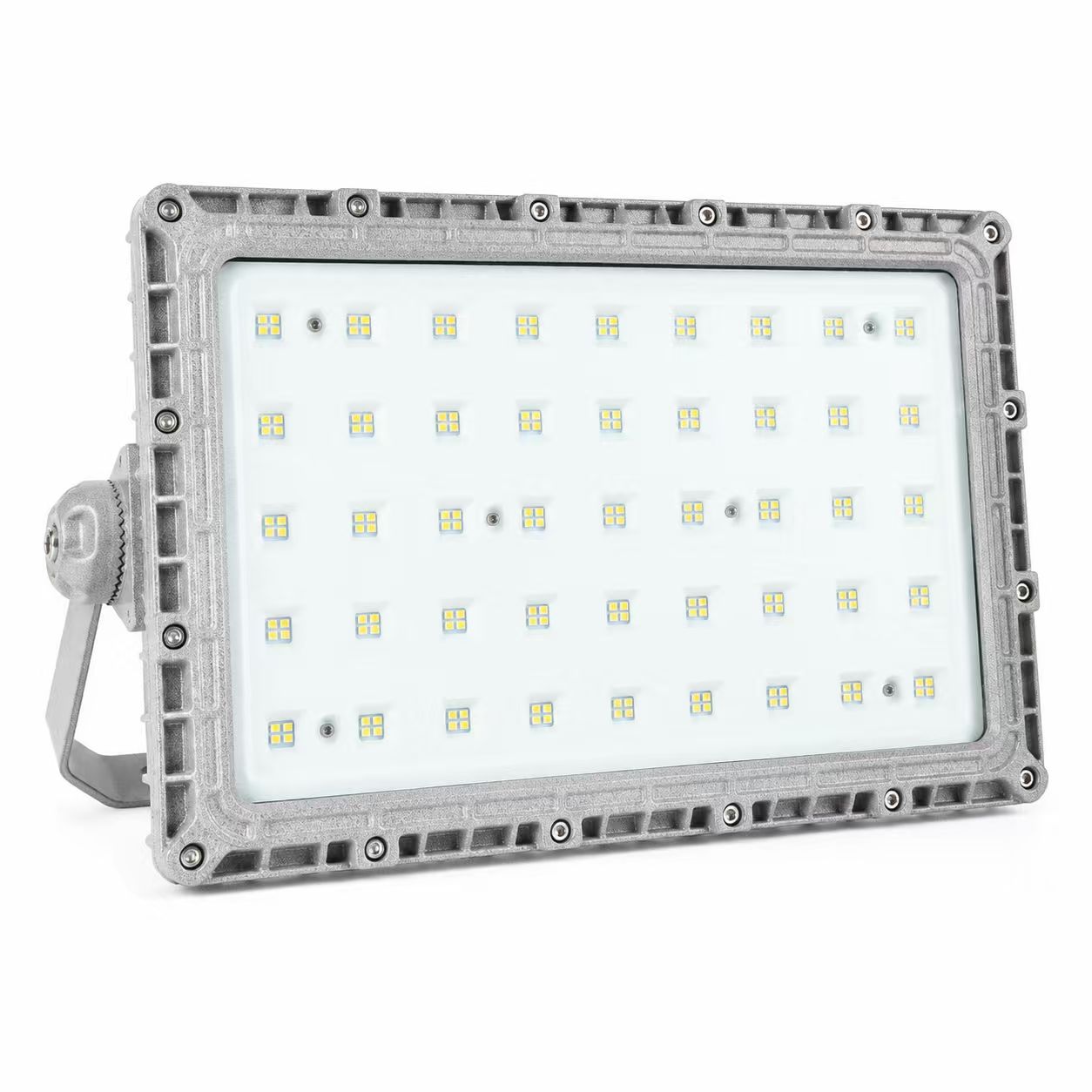

Modular Explosion-Proof LED High-Bay Light

PRODUCT OVERVIEW

Product Description

The composite flameproof and increased-safety structure uses a high-strength aluminium body, tempered-glass optical section and dedicated protected driver. Scalable LED modules, extensive cooling fins and several mounting arrangements support reliable illumination from general process areas to large high-bay facilities.

TECHNICAL DATA

Specifications

Explosion protection

Exdemb lIC T6 Gb/ExtDA21IP66 T80°C

Rated voltage

AC220V 50/60Hz

Light source

LED

Luminous efficacy

>105Lm/W

Light source power

I型:30W、40W、50W、60W

Type II power

70W、80W、100W、120W

Type III power

140W、150W、160W、180W

Type IV power

200W、220W、240W

Type V power

300W、400W、500W、600W、800W、1000W

Power factor

>0.95

Correlated colour temperature

5700K

Colour rendering index

Ra>80

Weight

I型:4Kg/II型:6Kg/Ill型:8.5Kg/IV型:10.5Kg

Ingress protection

IP66

Corrosion resistance

WF2

Cable entry

G3/4

Suitable cable size

中9mm~中13mm
