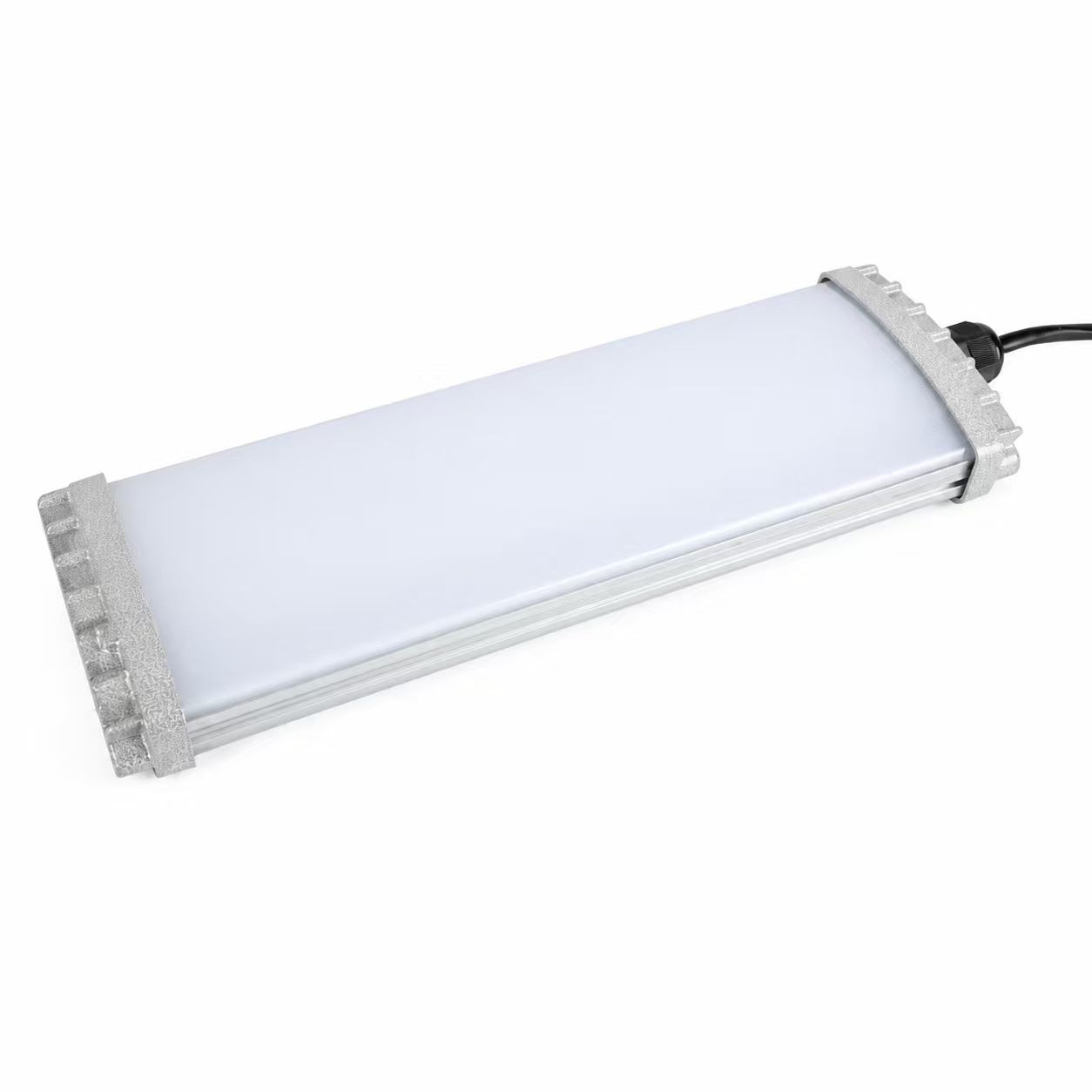

Explosion-Proof LED Linear Light

PRODUCT OVERVIEW

Product Description

An anodized aluminium profile, high-transmission diffuser and protected constant-current driver produce even illumination with reduced glare. Standard and emergency configurations, several lengths and multiple mounting options make it suitable for walkways, workshops and equipment corridors.

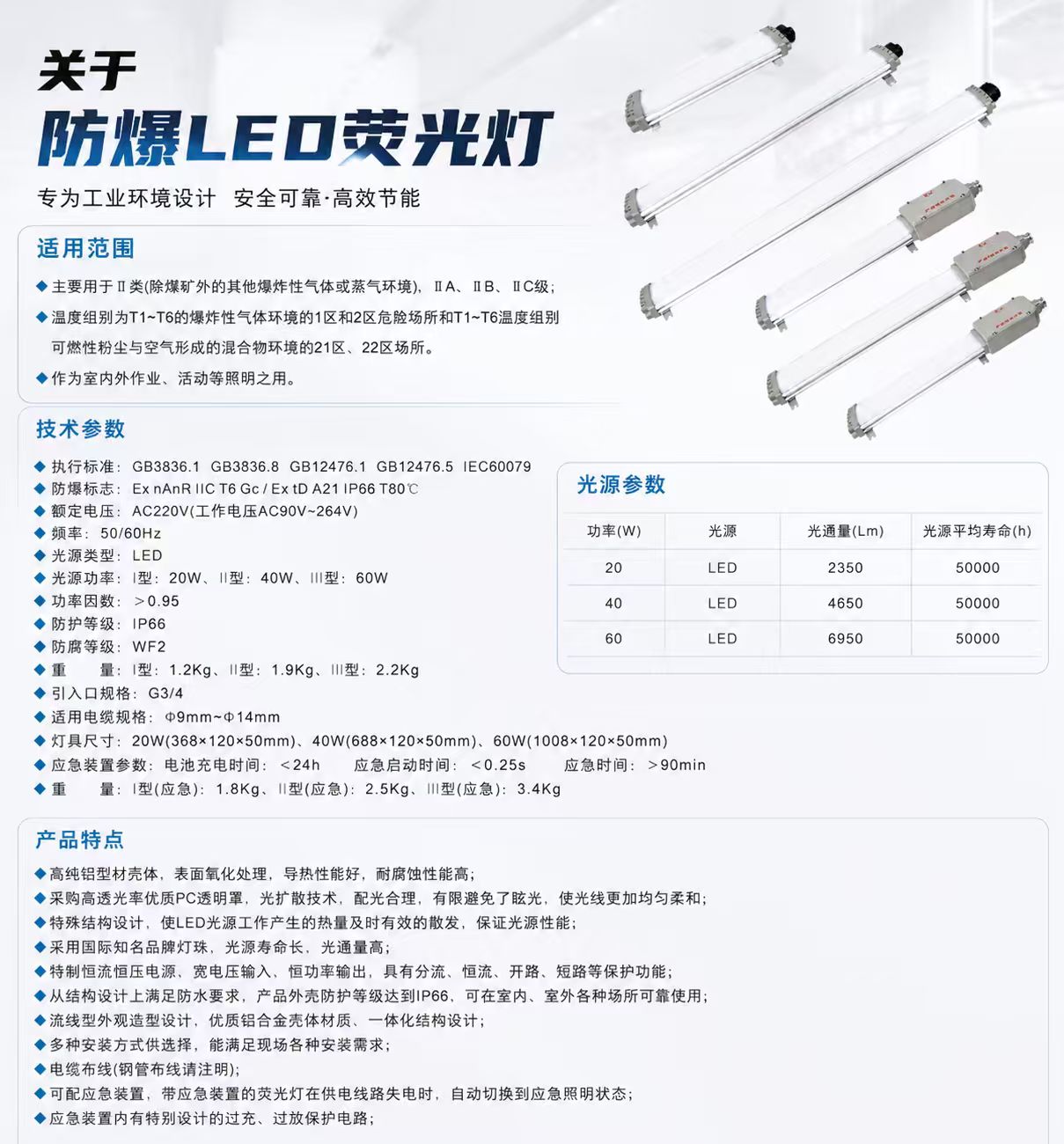

TECHNICAL DATA

Specifications

Explosion protection

ExnAnRIICT6Gc/ExtDA21IP66T80°C

Rated voltage

AC220V(工作电压AC90V~264V)

Frequency

50/60Hz

Light source

LED

Light source power

I型:20W、II型:40W、III型:60W

Power factor

>0.95

Ingress protection

IP66

Corrosion resistance

WF2

Weight

I型:1.2Kg、II型:1.9Kg、III型:2.2Kg

Cable entry

G3/4

Suitable cable size

中9mm~中14mm

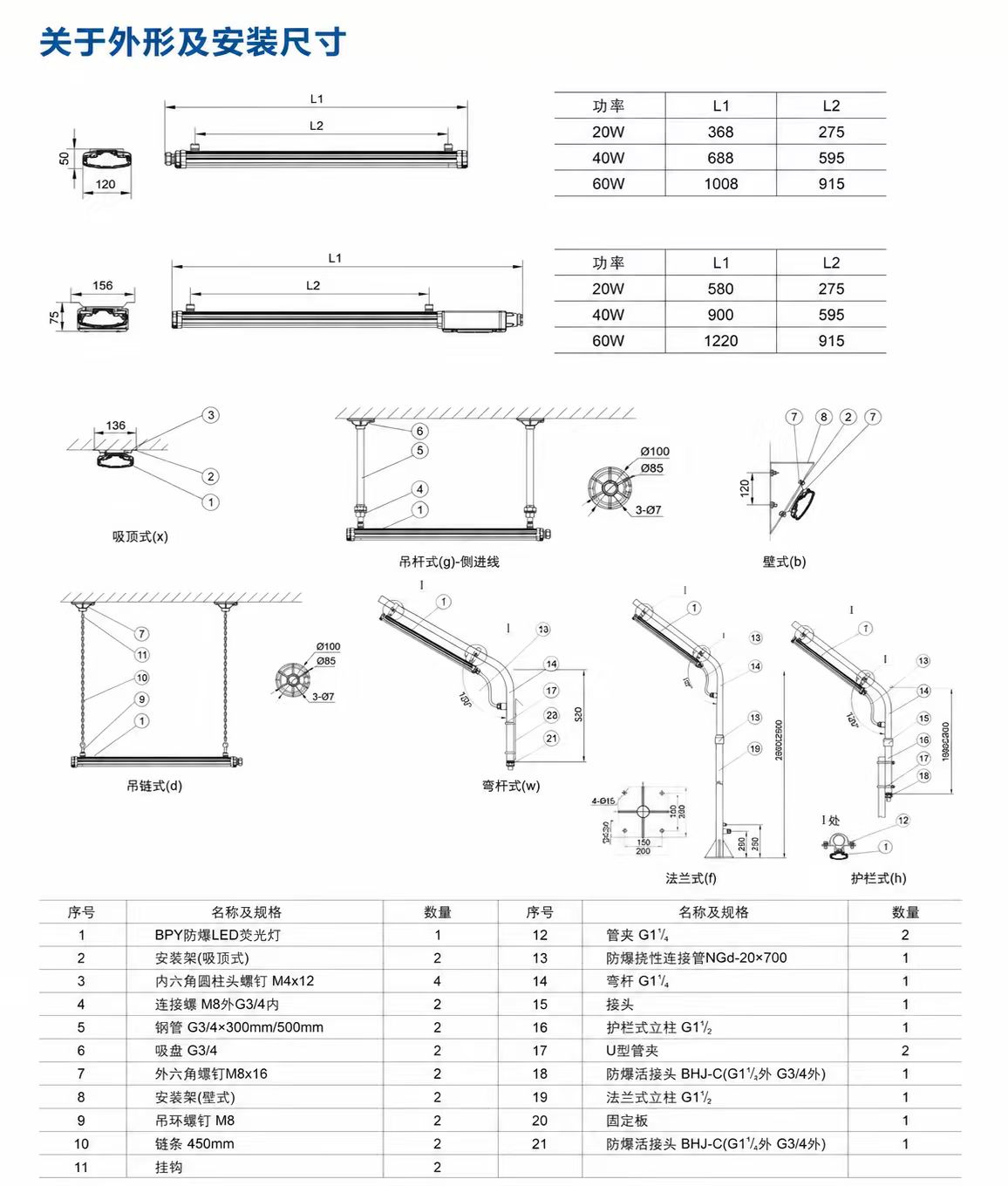

Luminaire dimensions

20W(368x120x50mm)、40W(688x120x50mm)、60W(1008x120x50mm)

Emergency start time

<0.25s，应急装置参数:电池充电时间:≤24h，应急时间:>90min

Weight

I型(应急):1.8Kg、II型(应急):2.5Kg、III型(应急):3.4Kg
