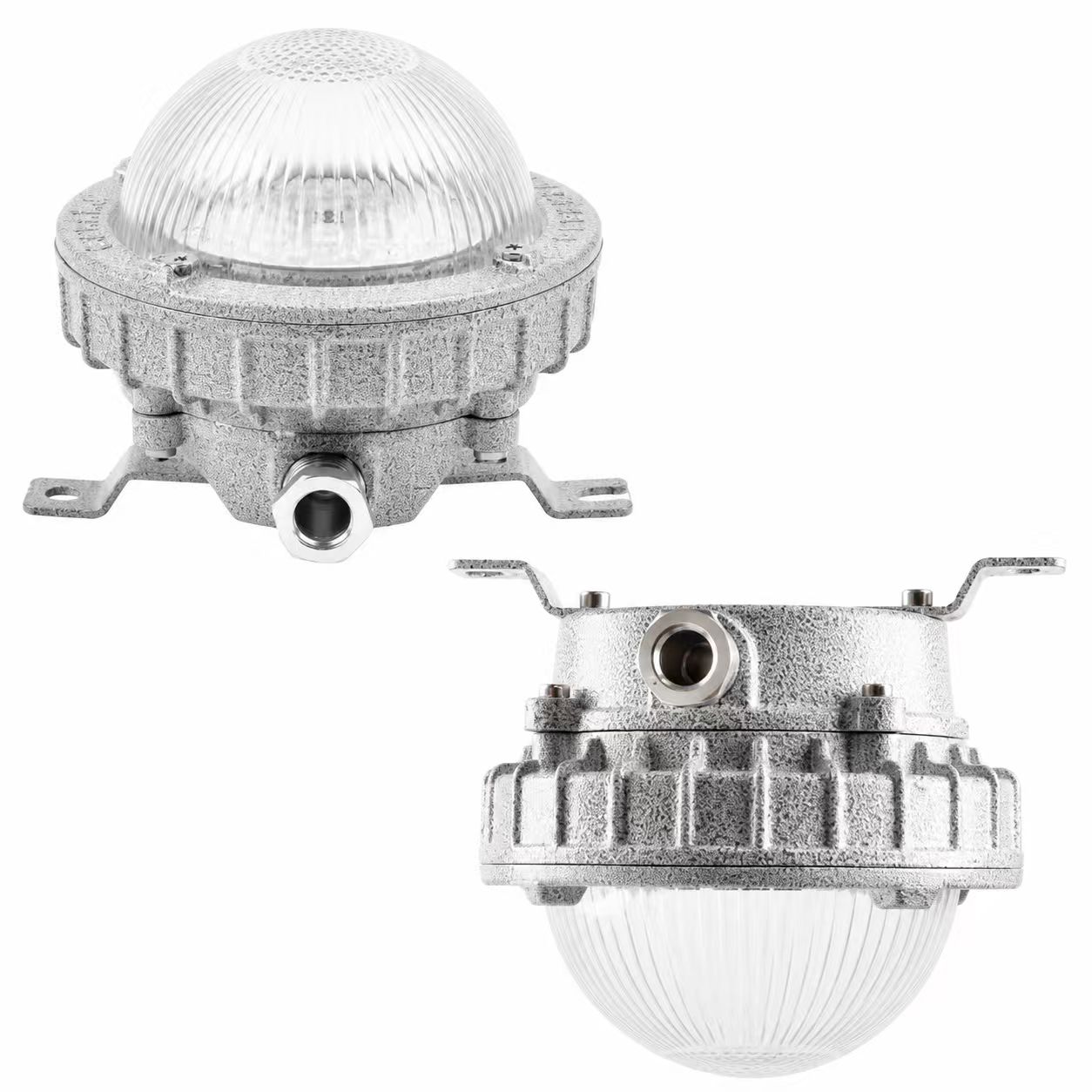

Explosion-Proof LED Ceiling Light

PRODUCT OVERVIEW

Product Description

The luminaire combines an aluminium enclosure, efficient LED source and sealed optical system for uniform, low-glare illumination. Multiple wattages and emergency options are available for corridors, equipment rooms, warehouses and process areas where dependable low-maintenance lighting is required.

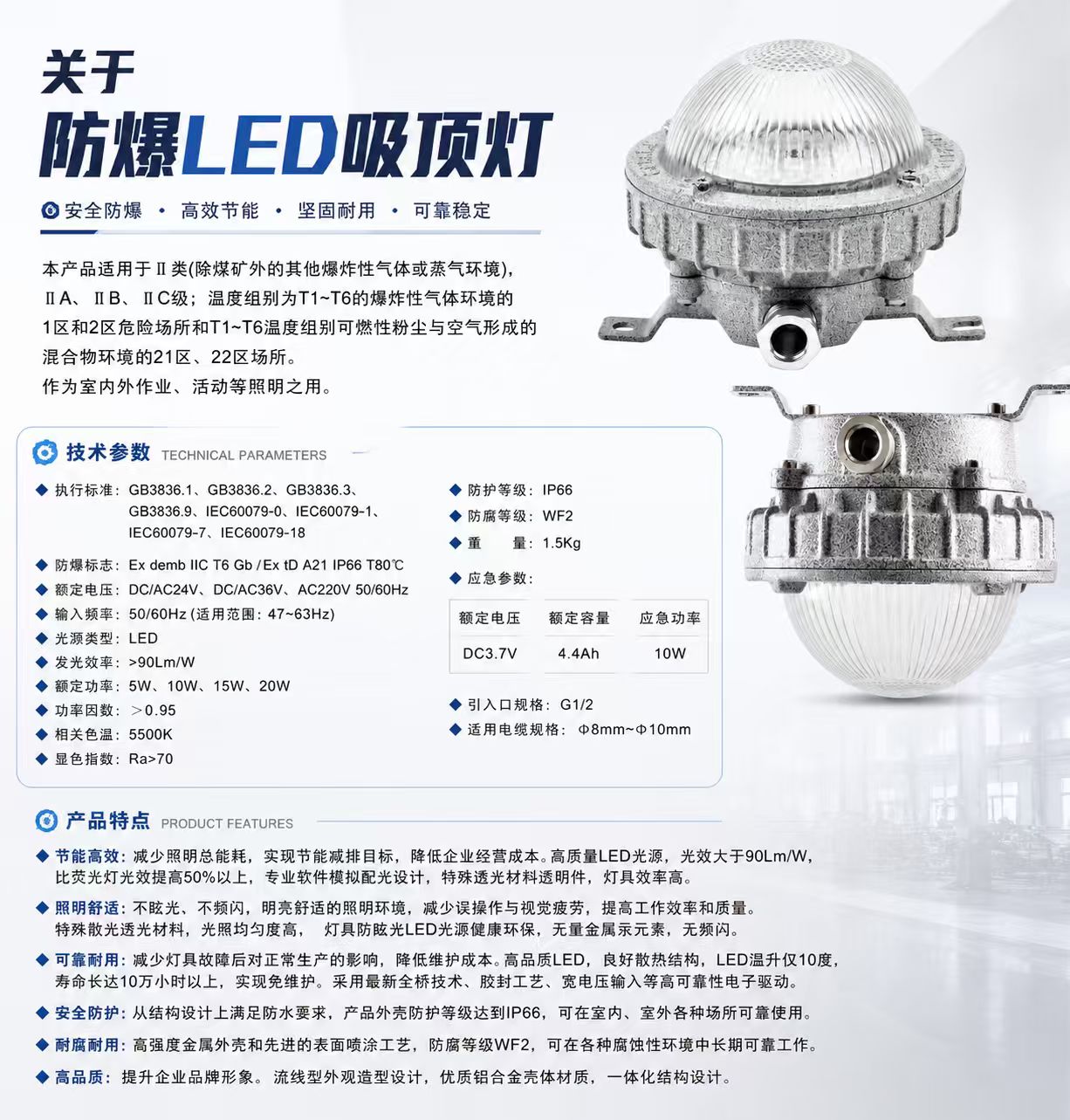

TECHNICAL DATA

Specifications

Explosion protection

Ex demb IIC T6 Gb/Ex tD A21 IP66 T80°C

Rated voltage

DC/AC24V, DC/AC36V.AC220V 50/60Hz

Input frequency

50/60Hz(适用范围:47~63Hz)

Light source

LED

Luminous efficacy

>90Lm/W

Rated power

5W、10W、15W、20W

Power factor

>0.95

Correlated colour temperature

5500K

Colour rendering index

Ra>70

Ingress protection

IP66

Corrosion resistance

WF2

Weight

1.5Kg

Emergency parameters

额定电压DC3.7V，额定容量4.4Ah，应急功率10W

Cable entry

G1/2

Suitable cable size

8mm~10mm
